Radio Shuttle

Availability:



Inquire

Product Description

Product Description

Each Type of Racking System comparation as below:

Radio Shuttle

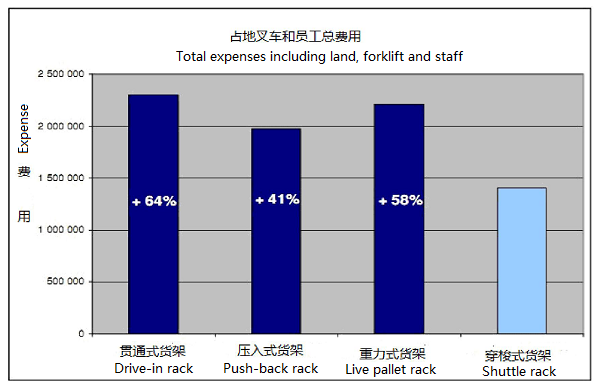

Total expenses: Land, fork and staff figure

The above comparison clearly shows that shuttle rack has absolute advantage in whole expenses! Therefore, it is also future selection for customer!

Radio Shuttle Choices & Technical Details

Parameters		Economic type	Standard type	Advanced type
Outline
Loading capcity max.		Max 1500kg	Max 1500kg	Max 1500kg
Move	Running speed	Vmax_empty：1.0m/s Vmax_full：0.8m/s	Vmax_empty：1.0m/s Vmax_full：0.8m/s	Vmax_empty：1.5m/s Vmax_full：1.0m/s
	Drive motor	Domestic brush servo motor 48VDC 600W	Domestic brushless servo motor 48VDC 600W	Imported brushless servo motor 48VDC 600W
	Servo driver	Domestic customized servo driver	Domestic customized servo driver	Imported brushless servo driver
Lift	Lift motor	Imported motor 48VDC 500W	Imported motor 48VDC 500W	Imported motor 48VDC 500W
Lift	Lift height	≤45mm	≤45mm	≤45mm
Move positioning：Laser sensor		Germany P+F/SICK	Germany P+F/SICK	Germany P+F/SICK
Pallet positioning：Laser sensor		Germany P+F/SICK	Germany P+F/SICK	Germany P+F/SICK
Lift control： proximity switch		Germany P+F	Germany P+F	Germany P+F
Object detection： photosensor		Germany P+F/SICK	Germany P+F/SICK	Germany P+F/SICK
Control system		Siemens S7-200 PLC	Siemens S7-200 PLC	Siemens S7-200 PLC
Remoter：two-way		Customized IMT	Customized IMT	Customized IMT
Power supply		Lithium battery	Lithium battery	Lithium battery
Battery capacity		48V，30AH	48V，30AH	48V，30AH
Running time		≥8h	≥8h	≥8h
Charging time		3~4H	3~4H	3~4H
Battery lifetime		Charge times≤1000	Charge times≤1000	Charge times≤1000
Operation mode		Remote control	Remote control	Remote control
Running noise		≤60db	≤60db	≤60db
Painting color		frame（black） others（light gray）	frame（black） others（light gray）	frame（red） others（light gray）
Ambient temperature		Temp ： 0℃～50℃ Humidity ： 5% ~ 95%	Temp ： 0℃～50℃ Humidity： 5% ~ 95%	Temp： 0℃～50℃ Humidity： 5% ~ 95%
